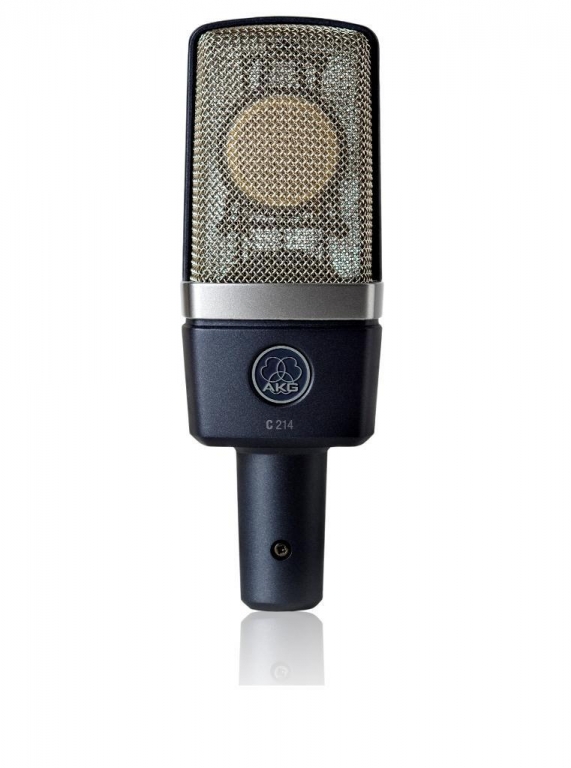

Mikrofon AKG C214

Mikrofon AKG C214 tehničke karakteristike :

Polar pattern
Cardioid

Frequency range
20 to 20,000 Hz

Sensitivity
20 mV/Pa (-34 dBV)

Max. SPL
136/156 dB SPL (0/-20 dB) (for 0.5% THD)

Equivalent noise level
13 dB-A to IEC 60268-4 (A-weighted)

Signal/noise ratio (A-weighted)
81 dB

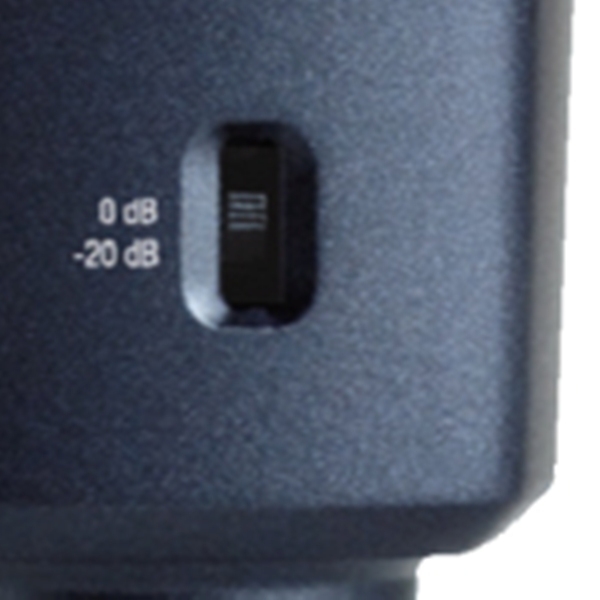

Preattenuation pad
0/-20 dB (switchable)

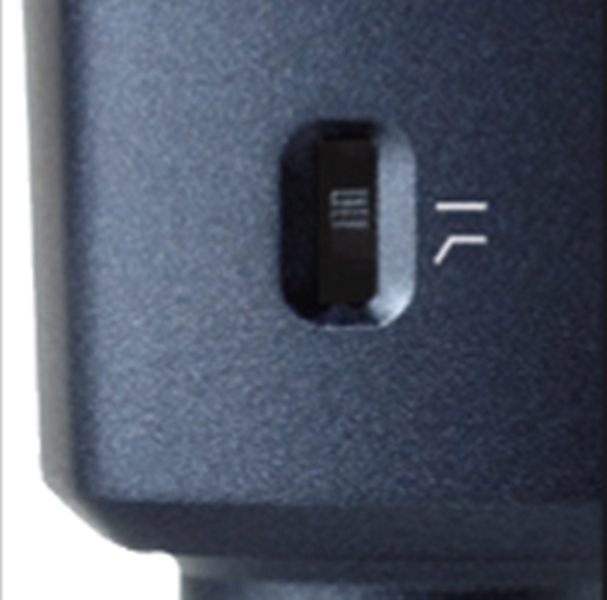

Bass cut filter slope
160 Hz, 6 dB/Octave, switchable

Impedance
<=200 ohms

Recommended load impedance
>=1000 ohms

Supply voltage
12 to 52 V Phantom power to IEC 61938

Powering
< 2 mA

Dynamic range
123/143 dB (0/-20 dB) (A-weighted)

Connector
IEC standard 3-pin XLR

Finish
matte grayish blue

Dimensions
160 x 55 mm (6.3 x 2.2 in.)

Net weight
280 g (0.62 lbs.)

Shipping weight
1450 g (3.22 lbs.)

Patent(s)

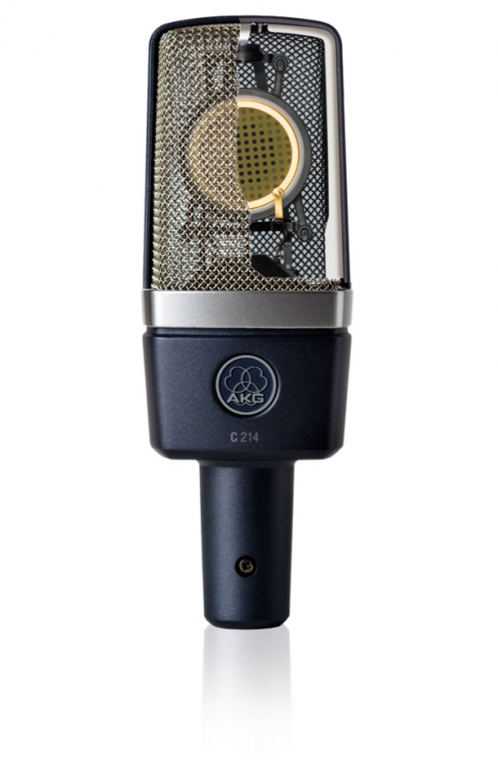

Electrostatic transducer (Patent no. AT 395.225, DE 4.103.784, JP 2.815.488)
