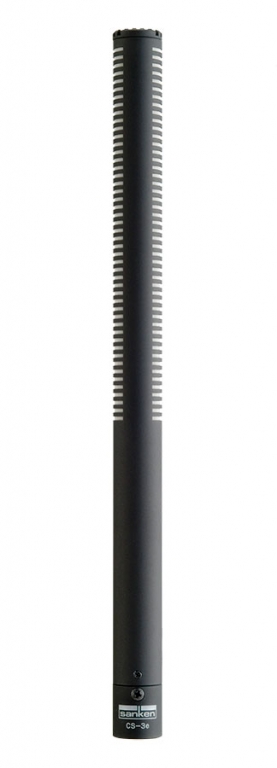

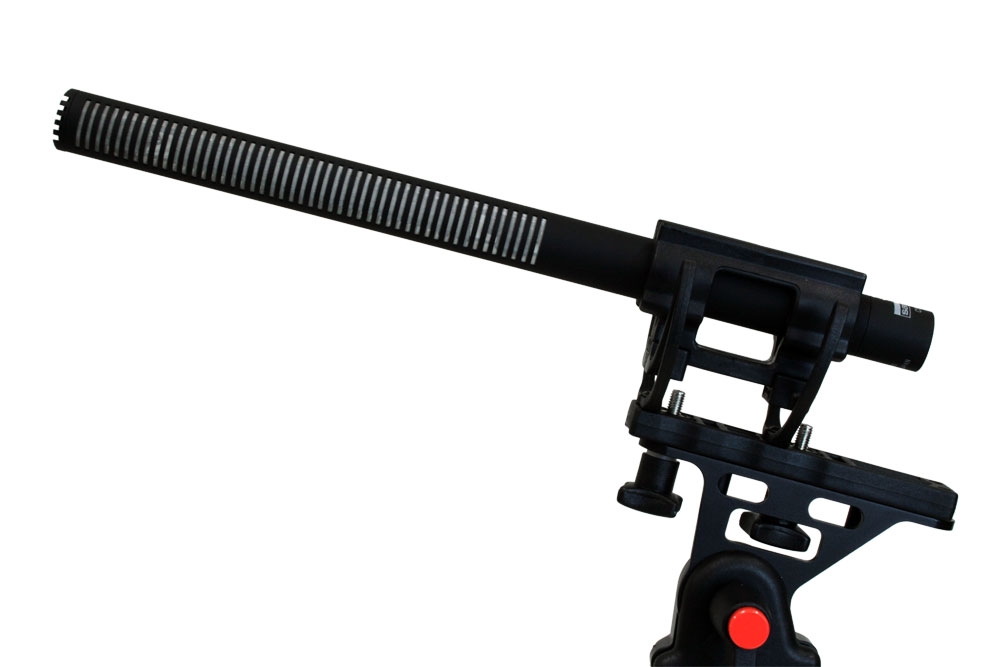

Sanken mikrofon CS-3

Conventional shotgun microphones use a line capsule array and a pipe with slits in front of the capsule to create high directivity by utilizing phase interference inside the casing. With this conventional design, high-directivity in the middle-low fre-quency range is not achieved, although high-directivity in the high frequency range is maintained. Conventional shotgun microphones are at a disadvantage because they invariably pick up unwanted sounds coming from the back and sides.

In order to solve this problem, conventional shotgun micro-phones designed for high directivity in the middle-low frequencies require a length of more than one meter (39 inches) in length. However, long shotgun microphones seriously affect mobility and are not ideal for field recording.

The remarkable performance of the CS-3e is based on the combination of a second-gradient and line microphone with three directional condenser elements, using new PPS (Poly-Gold-Phenylene-Sulfide) diaphragms to provide optimum humidity/temperature stability. The CS-3e is small and lightweight with a low-cut switch to satisfy the various needs of location and studio recording. The standard 19mm diameter permits use of a wide range of accessories developed for enhanced performance and field mobility.

The CS-3e virtually eliminates the proximity effect and maintains sharp directivity, while the sonic characteristics do not change with varied distances between sources and microphone. This is a significant advantage over all other directional microphones.

Unique three-capsule design
Super Sharp Directivity
Extremely low proximity effect
Long reach
Only 10.6″ in length
Low-cut switch (-3dB @ 100Hz)
Clear and natural sound
Standard XLR3 connector
