B&C Zvučnik 10HPL64

B&C Zvučnik 10HPL64 :

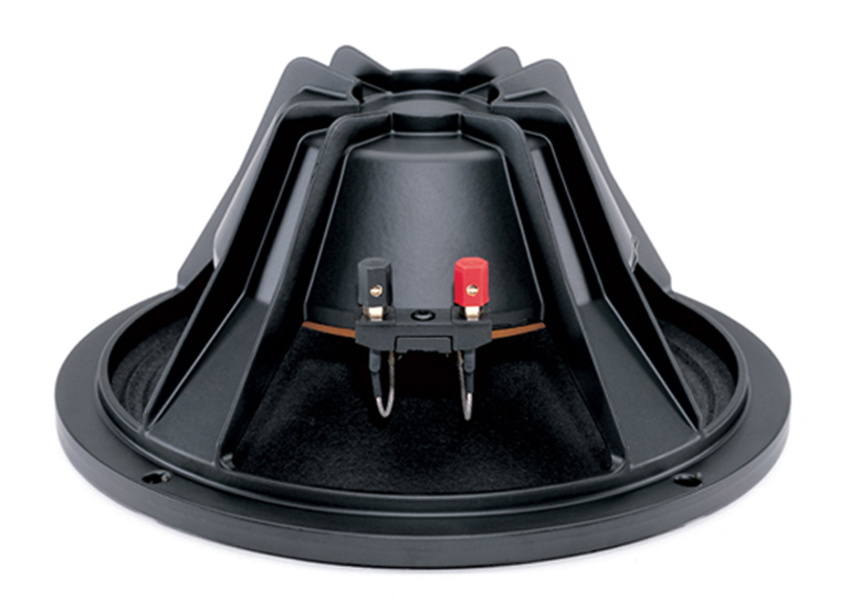

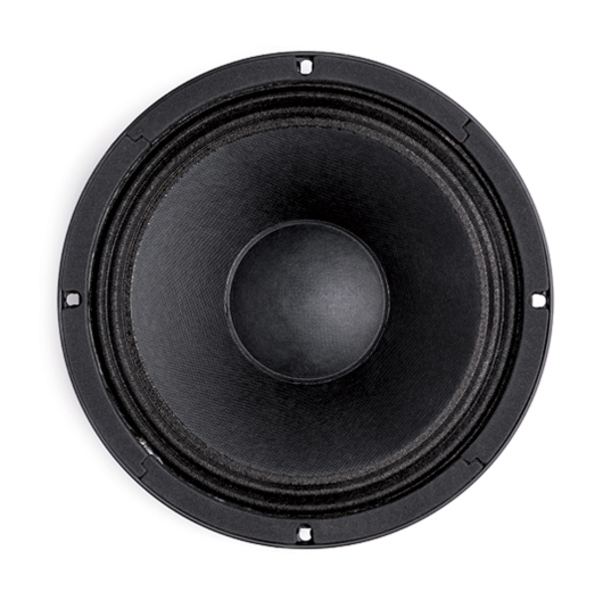

B&C 10HPL64 10" 200W 8 Ohms Neodymium Loudspeaker Driver (Faston)

Specifications

Nominal diameter 250 mm (10.0 in)
Nominal impedance 8 ohms
Minimum impedance 6.2 ohms
Nominal power handling 200 W
Continuous power handling 400 W
Sensitivity (1W/1m) 99.0 dB
Frequency range 60 - 4000 Hz
Voice coil diameter 64 mm
Winding material Aluminium
Former material Glass Fibre
Winding depth 12 mm
Magnetic gap depth 8 mm
Flux density 1.25 T

Design

Surround shape Double Roll
Cone shape Exponential
Magnet material Neodymium Inside Slug
Spider Single
Pole design Straight Pole
Woofer cone treatment None
Recommended enclosure 26.0 dm3
Recommended tuning 67 Hz

Parameters

Fs 61 Hz
Re 5.4 ohms
Qes 0.33
Qms 4.5
Qts 0.31
Vas 32.0 dm3
Sd 320.0 cm2
Reference efficiency 2.5 %
Xmax 4.0 mm
Xvar 5.5 mm
Mms 29 g
Bl 15.0 Txm
Le 0.5 mH
EBP 184 Hz

Mounting and Shipping Info

Overall diameter 261 mm
Bolt circle diameter 245 mm
Baffle cutout diameter 230.0 mm
Depth 122 mm
Flange and gasket thickness 13 mm
Air volume occupied by driver 1.5 dm3
Net weight 2.0 kg
Shipping weight 2.6 kg
Shipping box 270x270x150 mm
