B&C Zvučnik 10MBX64

B&C Zvučnik 10MBX64 :

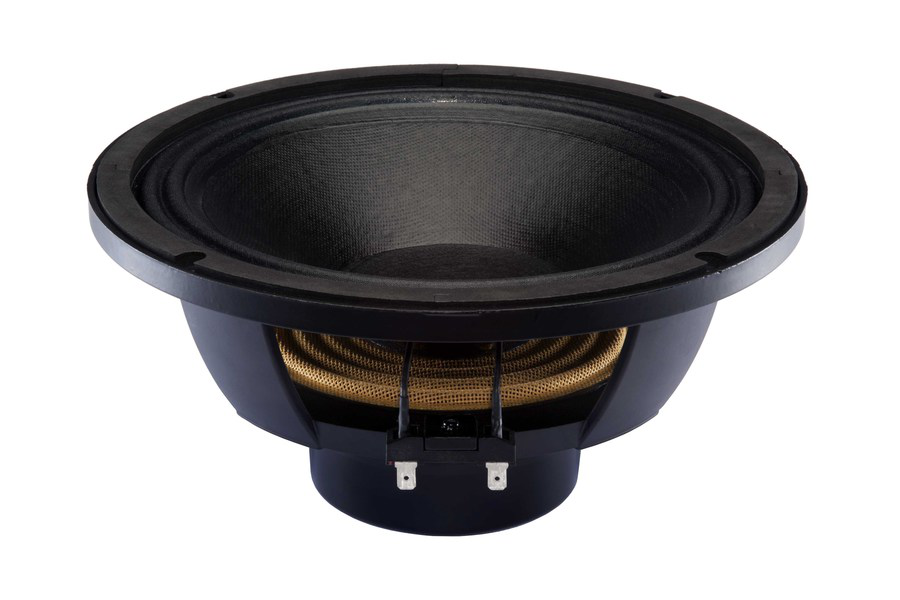

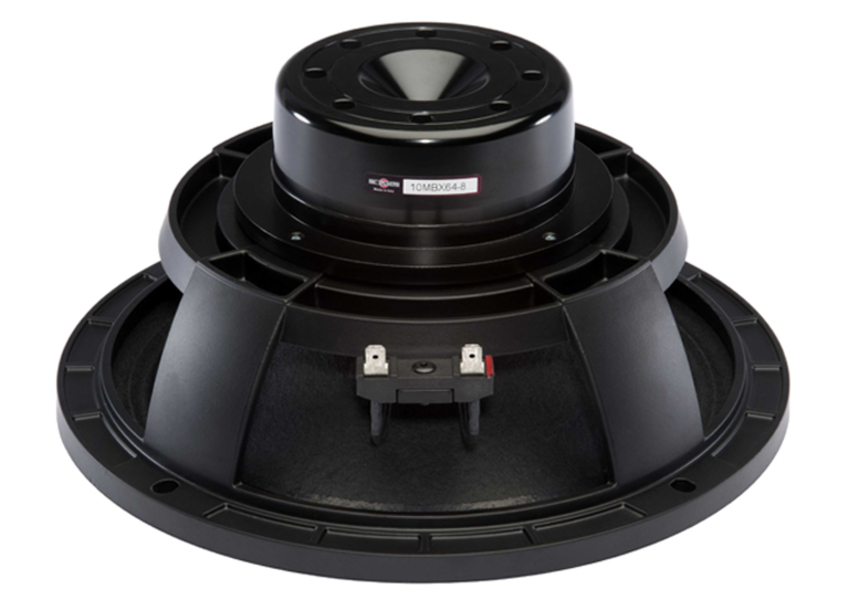

B&C 10MBX64 10" 350W 8 Ohm Loudspeaker Driver

Specifications:

Nominal diameter 250 mm (10.0 in)
Nominal impedance 8 ohms
Minimum impedance 6.5 ohms
Nominal power handling 350 W
Continuous power handling 700 W
Sensitivity (1W/1m) 99.0 dB
Frequency range 65 - 6000 Hz
Voice coil diameter 64 mm (2.5 in)
Winding material Aluminium
Former material Glass Fibre
Winding depth 13 mm (0.51 in)
Magnetic gap depth 8 mm (0.31 in)
Flux density 1.25 T

Design:

Surround shape Double Roll
Cone shape Radial
Magnet material Neodymium Inside Slug
Spider Single
Pole design T-Pole
Woofer cone treatment Hydrophobic Treatment

Parameters:

Fs 65 Hz
Re 5.4 ohms
Qes 0.28
Qms 4.0
Qts 0.26
Vas 26.0 dm3 (0.92 ft3)
Sd 346.0 cm2 (53.63 in2)
Reference efficiency 3.1 %
Xmax 4.5 mm
Xvar 5.0 mm
Mms 33 g
Bl 17.1 Txm
Le 0.44 mH
EBP 232 Hz

Mounting And Shipping Info:

Overall diameter 261 mm (10.28 in)
Bolt circle diameter 245 mm (9.65 in)
Baffle cutout diameter 230.0 mm (9.06 in)
Depth 128 mm (5.04 in)
Flange and gasket thickness 17 mm (0.67 in)
Air volume occupied by driver 1.5 dm3 (0.05 ft3)
Net weight 3.2 kg (7.05 lb)
Shipping weight 3.8 kg (8.38 lb)
Shipping box 330x330x160 mm (12.99x12.99x6.30 in)
Service Kit RCK10MBX648
