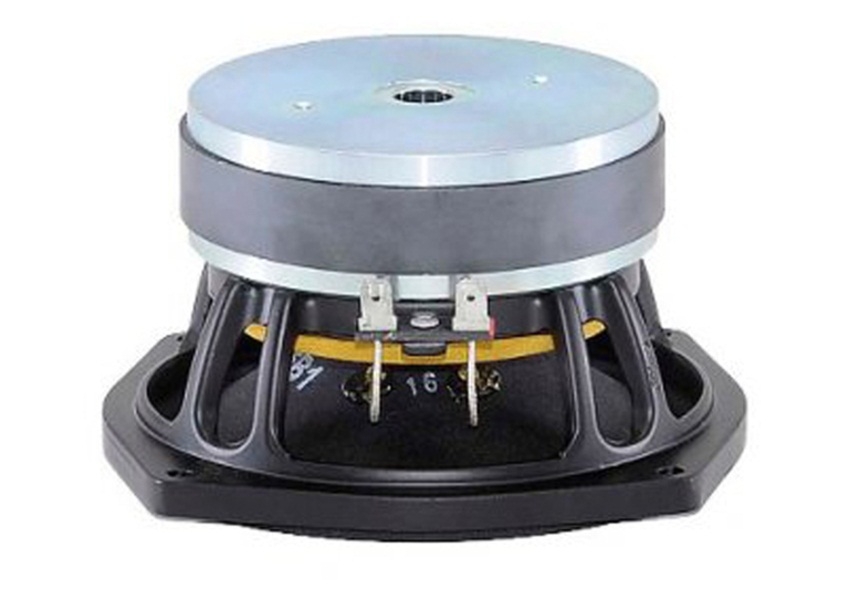

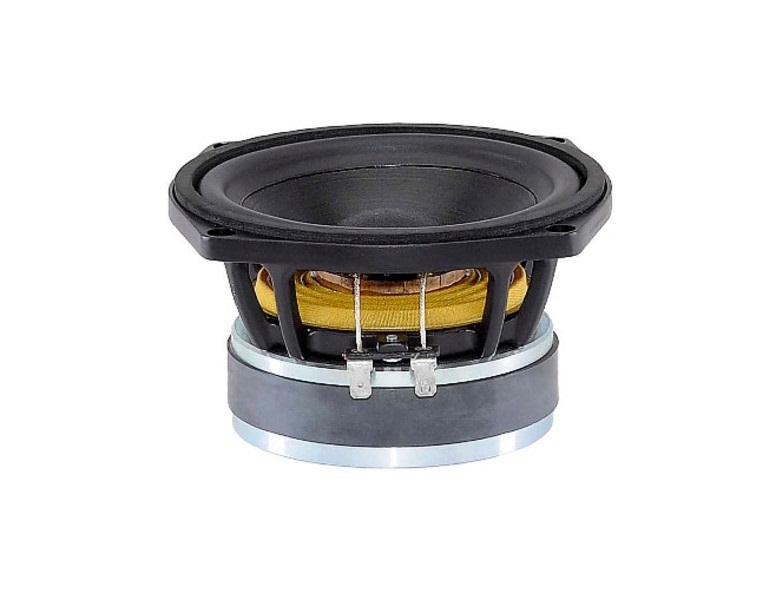

B&C Zvučnik 5FG44

B&C Zvučnik 5FG44 :

B&C 5FG44 5" 100W 8 Ohm Loudspeaker Driver

Specifications:

Nominal diameter 127 mm (5.0 in)
Nominal impedance 8 ohms
Minimum impedance 6.5 ohms
Nominal power handling 100 W
Continuous power handling 200 W
Sensitivity (1W/1m) 92.0 dB
Frequency range 63 - 6000 Hz
Voice coil diameter 44 mm (1.7 in)
Winding material Copper
Former material Kapton
Winding depth 9 mm (0.35 in)
Magnetic gap depth 6 mm (0.25 in)
Flux density 1.1 T

Design:

Surround shape Roll
Cone shape Exponential
Magnet material Ferrite
Spider Single
Pole design T-Pole
Woofer cone treatment WP Waterproof Front Side
Recommended enclosure 5.0 dm3 (0.17 ft3)
Recommended tuning 70 Hz

Parameters:

Fs 63 Hz
Re 5.8
Qes 0.3
Qms 10.0
Qts 0.27
Vas 6.3 dm3
Sd 95.0 cm2
Reference Efficiency 0.55 %
Xmax 3.0 mm
Xvar 5.0 mm
Mms 12 g
Bl 10.0 Txm
Le 0.8 mH
EBP 210 Hz

Mounting And Shipping Info:

Overall diameter 135 mm
Bolt circle diameter 142 mm
Baffle cutout diameter 122.0 mm
Depth 77 mm
Flange and gasket thickness 9 mm Air volume occupied by driver 0.5 dm3
Net weight 1.6 kg
Shipping weight 1.85 kg
Shipping box 221x214x130 mm
