B&C Zvučnik 5MDN38

B&C Zvučnik 5MDN38 :

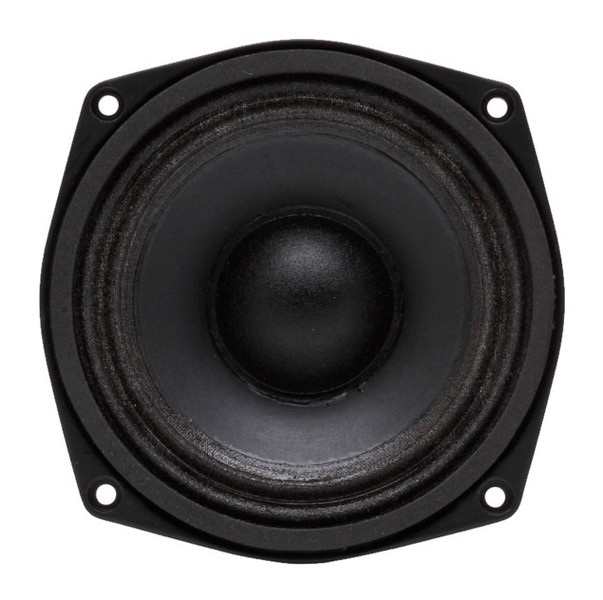

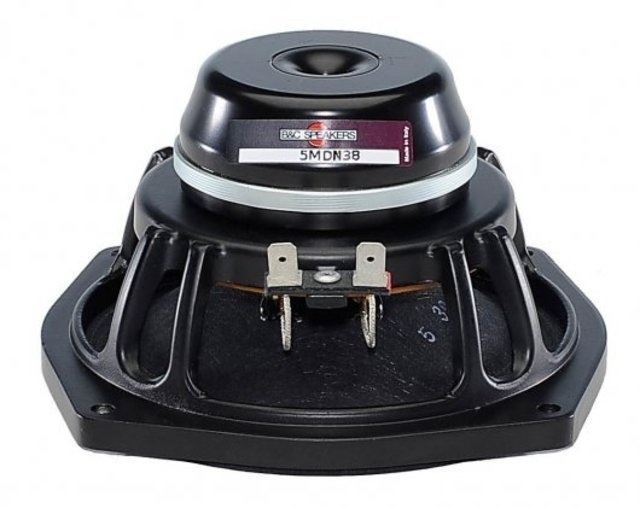

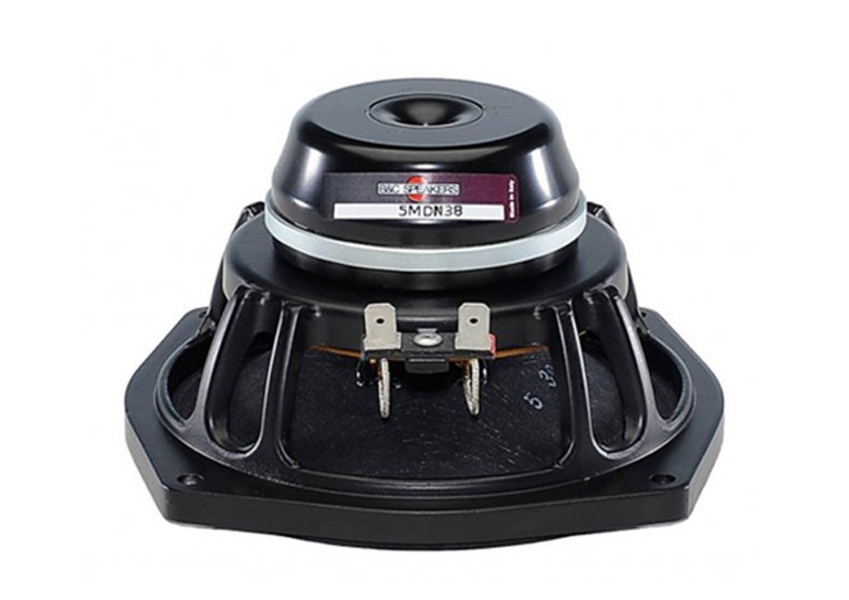

B&C 5MDN38 5" 200W 8 Ohm Loudspeaker driver

Features:

200 W continuous program power capacity
38 mm (1.5 in) aluminium voice coil
240 - 10000 Hz response
96 dB sensitivity
Shorting copper cap for extended HF response

Specifications:

Nominal diameter 127 mm (5.0 in)
Nominal impedance 8 Ω
Minimum impedance 7.0 Ω
Nominal power handling * 100 W
Continuous power handling * 200 W
Sensitivity (1W/1m) * 96.0 dB
Frequency range 240 - 10000 Hz
Voice coil diameter 38 mm (1.5 in)
Winding material Aluminium
Former material Glass Fibre
Winding depth 10 mm (0.4 in)
Magnetic gap depth 6 mm (0.24 in)
Flux density 1.25 T

Design

Surround shape Triple Roll
Cone shape Exponential
Magnet material Neodymium Ring
Spider Single
Pole design Straight Pole
Woofer cone treatment WP Waterproof Front Side

Parameters

Fs 240 Hz
Re 5.6 Ω
Qes 0.54
Qms 2.6
Qts 0.45
Vas 0.6 dm3 (0.02 ft3)
Sd 95.0 cm2 (14.7 in2)
η₀ 1.7 %
Xmax 3.5 mm
Xvar 2.5 mm
Mms 9 g
Bl 11.5 Txm
Le 0.4 mH
EBP 444 Hz

Mounting And Shipping Info

Overall diameter 150 mm (5.9 in)
Bolt circle diameter 142 mm (5.6 in)
Baffle cutout diameter 122.0 mm (4.8 in)
Depth 75 mm (2.95 in)
Flange and gasket thickness 9 mm (0.35 in)
Air volume occupied by driver 0.35 dm3 (0.01 ft3)
Net weight 0.85 kg (1.9 lb)
Shipping weight 1.1 kg (2.4 lb)
Shipping box 221x214x130 mm (8.7x8.4x5.1 in)
