B&C Zvučnik 6MD38

B&C Zvučnik 6MD38 :

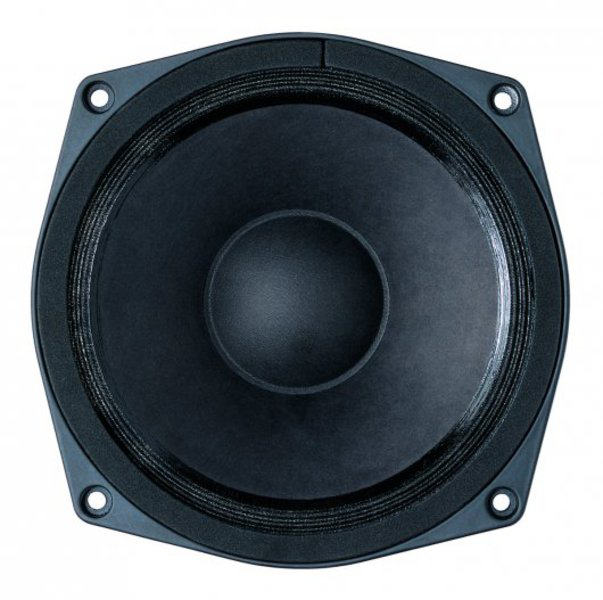

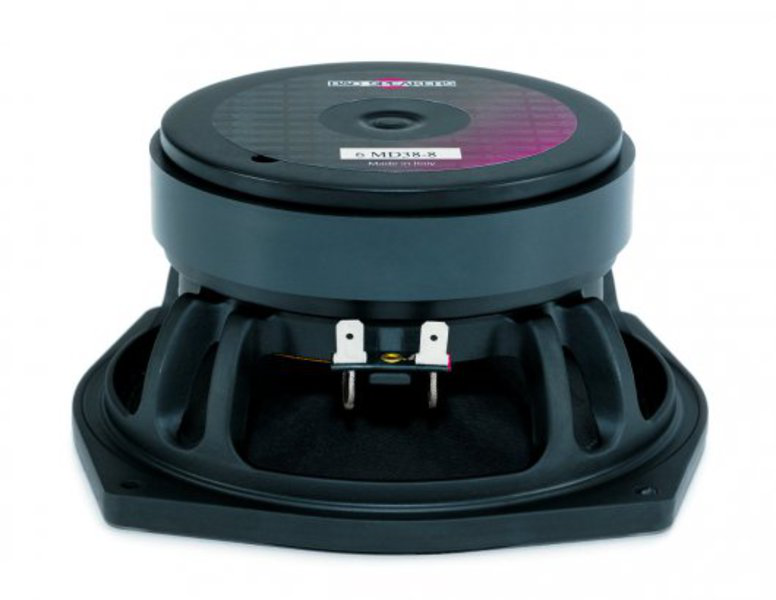

B&C 6MD38 6" 120W 8 Ohms Loudspeaker Driver

Specifications:

Nominal diameter 170 mm (6.5 in)
Nominal impedance 8 ohms
Minimum impedance 6.5 ohms
Nominal power handling 120 W
Continuous power handling 240 W
Sensitivity (1W/1m) 96.0 dB
Frequency range 150 - 6000 Hz
Voice coil diameter 38 mm
Winding material Aluminium
Former material Glass Fibre
Winding depth 9 mm
Magnetic gap depth 6 mm
Flux density 1.4 T

Design:

Surround shape Triple Roll
Cone shape Exponential
Magnet material Ferrite
Spider Single
Pole design T-Pole
Woofer cone treatment WP Waterproof Front Side

Parameters:

Fs 130 Hz
Re 5.7 ohms
Qes 0.49
Qms 3.7
Qts 0.44
Vas 3.0 dm3
Sd 132.0 cm2
Reference efficiency 1.4 %
Xmax 2.0 mm
Xvar 4.5 mm
Mms 12 g
Bl 10.5 Txm
Le 0.25 mH
EBP 265 Hz

Mounting And Shipping Info:

Overall diameter 187 mm
Bolt circle diameter 172 mm
Baffle cutout diameter 145.0 mm
Depth 82 mm
Flange and gasket thickness 9 mm
Air volume occupied by driver 0.8 dm3
Net weight 2.2 kg
Shipping weight 2.45 kg
Shipping box 221x214x130 mm
Recone Kit RCK06MD388
