B&C Zvučnik 6MDN44

B&C Zvučnik 6MDN44 :

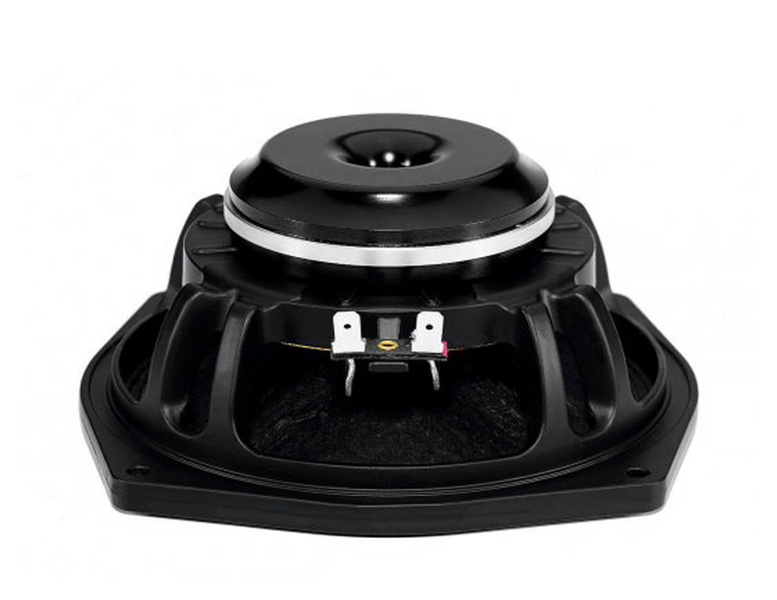

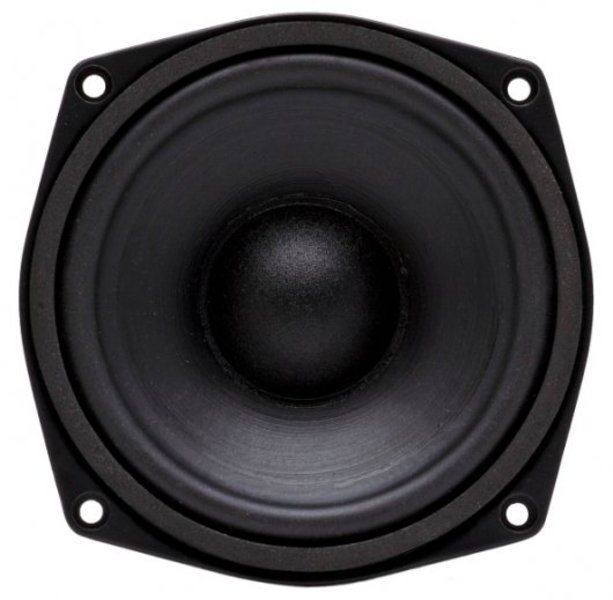

B&C 6MDN44 6" 150W 8 Ohm Loudspeaker Driver

Specifications:

Nominal diameter 170 mm (6.5 in)
Nominal impedance 8 ohms
Minimum impedance 6.5 ohms
Nominal power handling 150 W
Continuous power handling 300 W
Sensitivity (1W/1m) 96.5 dB
Frequency range 150 - 6000 Hz
Voice coil diameter 44 mm (1.7 in)
Winding material Aluminium
Former material Glass Fibre
Winding depth 10 mm
Magnetic gap depth 6 mm
Flux density 1.45 T

Design:

Surround shape Triple Roll
Cone shape Exponential
Magnet material Neodymium Ring
Spider Single
Pole design T-Pole
Woofer cone treatment WP Waterproof Front Side

Parameters:

Fs 140 Hz
Re 5.4 ohms
Qes 0.46
Qms 2.8
Qts 0.4
Vas 2.7 dm3
Sd 132.0 cm2
Reference efficiency 1.6 %
Xmax 2.5 mm
Xvar 3.0 mm
Mms 11 g
Bl 11.0 Txm
Le 0.47 mH
EBP 304 Hz

Mounting And Shipping Info:

Overall diameter 187 mm
Bolt circle diameter 172 mm
Baffle cutout diameter 145.0 mm
Depth 73 mm
Flange and gasket thickness 11 mm
Air volume occupied by driver 0.6 dm3
Net weight 1.0 kg
Shipping weight 1.25 kg
Shipping box 221x214x130 mm
Recone Kit RCK06MDN448
