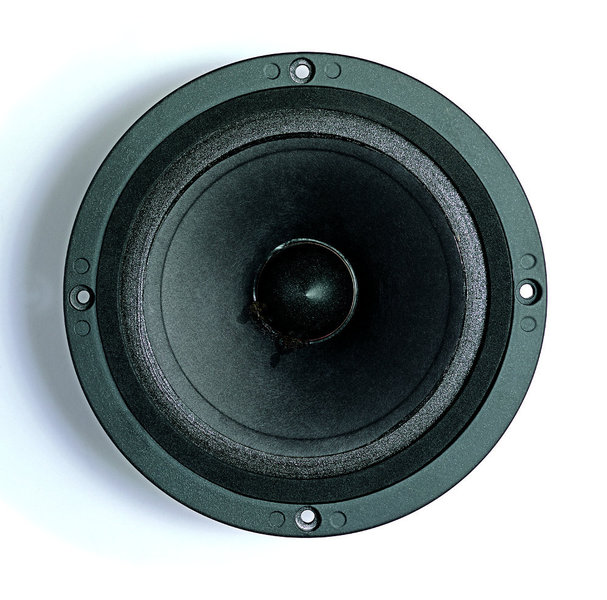

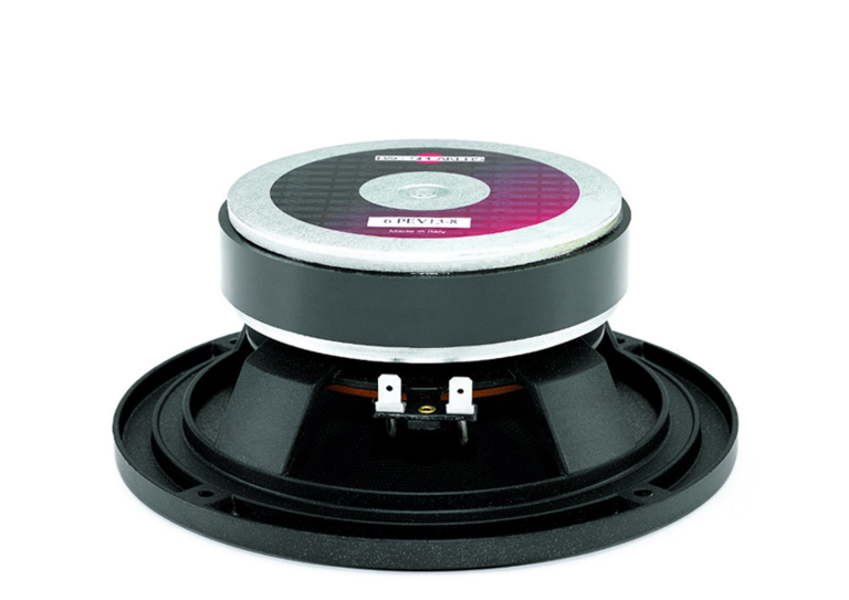

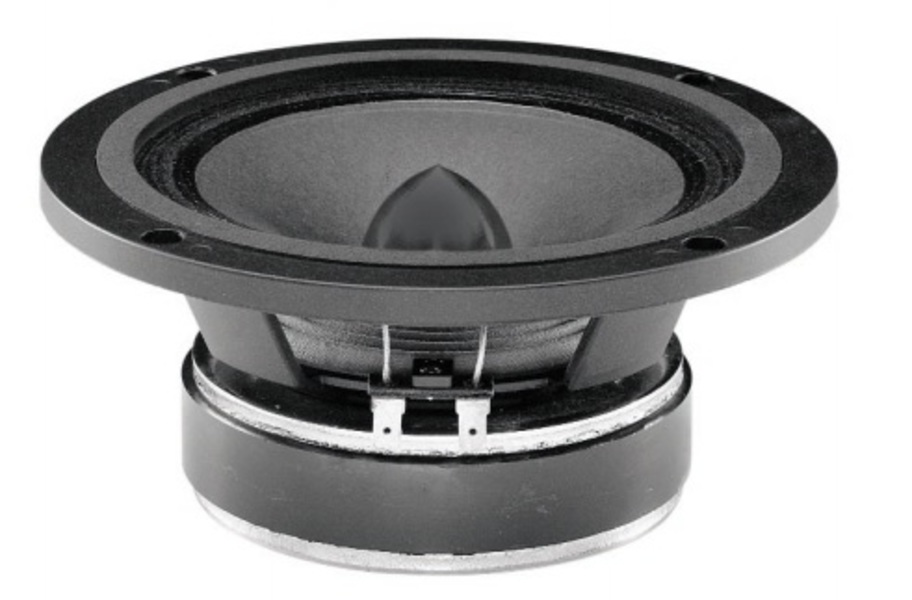

B&C Zvučnik 6PEV13

B&C Zvučnik 6PEV13 :

B&C 6PEV13 6" 120W 8 Ohm Loudspeaker Driver

Specifications:

Nominal diameter 170 mm (6.5 in)
Nominal impedance 8 ohms
Minimum impedance 6.0 ohms
Nominal power handling 120 W
Continuous power handling 240 W
Sensitivity (1W/1m) 99.0 dB
Frequency range 150 - 8000 Hz
Voice coil diameter 38 mm (1.5 in)
Winding material Aluminium
Former material Glass Fibre
Winding depth 7 mm
Magnetic gap depth 6 mm
Flux density 1.4 T

Design:

Surround shape Flat
Cone shape Exponential
Magnet material Ferrite
Spider Single
Pole design Straight Pole
Woofer cone treatment None

Parameters:

Fs 126 Hz
Re 5.2 ohms
Qes 0.39
Qms 4.6
Qts 0.36
Vas 6.0 dm3
Sd 132.0 cm2
Reference efficiency 3.0 %
Xmax 2.5 mm
Xvar 1.5 mm
Mms 6 g
Bl 8.2 Txm
Le 0.6 mH
EBP 323 Hz

Mounting And Shipping Info:

Overall diameter 187 mm
Bolt circle diameter 172 mm
Baffle cutout diameter 145.0 mm
Depth 78 mm
Flange and gasket thickness 11 mm
Air volume occupied by driver 0.8 dm3
Net weight 2.4 kg
Shipping weight 10.9 kg
Shipping box 215x215x135 mm
Recone Kit RCK06PEV138
